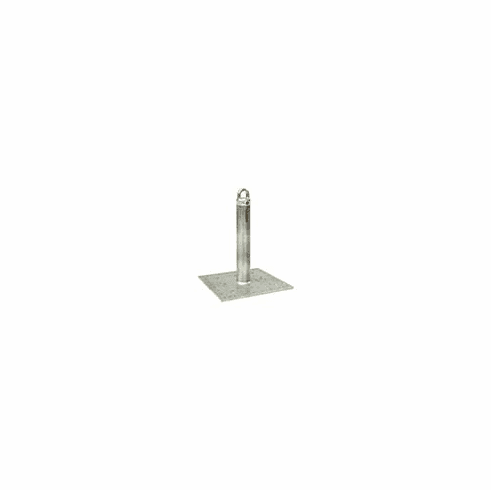

CRA-W WW 18"xSch40x3.0" Riser, Loop Top, 16x16x3/8 Base. HDG. Import 1033-W
This Pre-Engineered permanent flat/low-slope roof anchor is specified for use as a single user fall protection anchor point, a window-washing suspension/tie-back anchor point or as a horizontal lifeline intermediate anchor. CRA Overview (see the Instruction/Specification Manual for details):
DECKING ATTACHMENTS: Wood Decking, Metal Decking, Existing Concrete Decks, Pour-In Place Concrete Decks, Structural Wood Beams and Structural Steel ATTACHMENT HARDWARE: ½” Grade-8 Bolts, A-307 Threaded Rod, Concrete Wedge Anchors, #14 Hex Head Screws, HeadLok Screws and Field Welds ROOFING MATERIAL: Built-Up Roofing, Spray-On Roofing, Modified Bitumen Roofing, Green Roofs, PVC, EPDM, TPO, Asphalt Shingle Roofing, Corrugated and Standing Seam Metal Roofs FLASHING: provided by the roofing contractor or built on site and flashed as per standard procedures for a 3” or 4.5” OD pipe. A factory supplied 35-year EPDM flashing for metal roof applications is available FALL PROTECTION CONFIGURATIONS: Stand Alone Anchor/Tie-Back Anchors for Fall Protection Roof Perimeter Cable Pass-Through systems Roof Centerline Cable Pass-Through systems Roof Perimeter Based Window Washing Tie-Back Anchors Roof Centerline Based Window Washing Tie-Back Anchors
